AAC Blocks
Superior green solution with lighter weight and best in compressive strength. Porous structure of it allows for superior fire resistance. It is an eco-friendly replacement for conventional red clay brick in all aspects governed by IS Norms
PRODUCT SPECIFICATION
| S.No | Parameter | AAC Block | Clay Brick |
|---|---|---|---|
| 1. | Size (L * H * T) | 600 * 200 * (50 to 300) 625 * 240 * (50 to 300) 650 * 240 * (50 to 300) |
230 * 100 * 75 mm |
| 2. | Size Tolerance | 3 mm (+/-) | 05 to 15mm (+/-) |
| 3. | Compressive Strength | as per IS:2185 - Part 3 | as per IS:1077 |

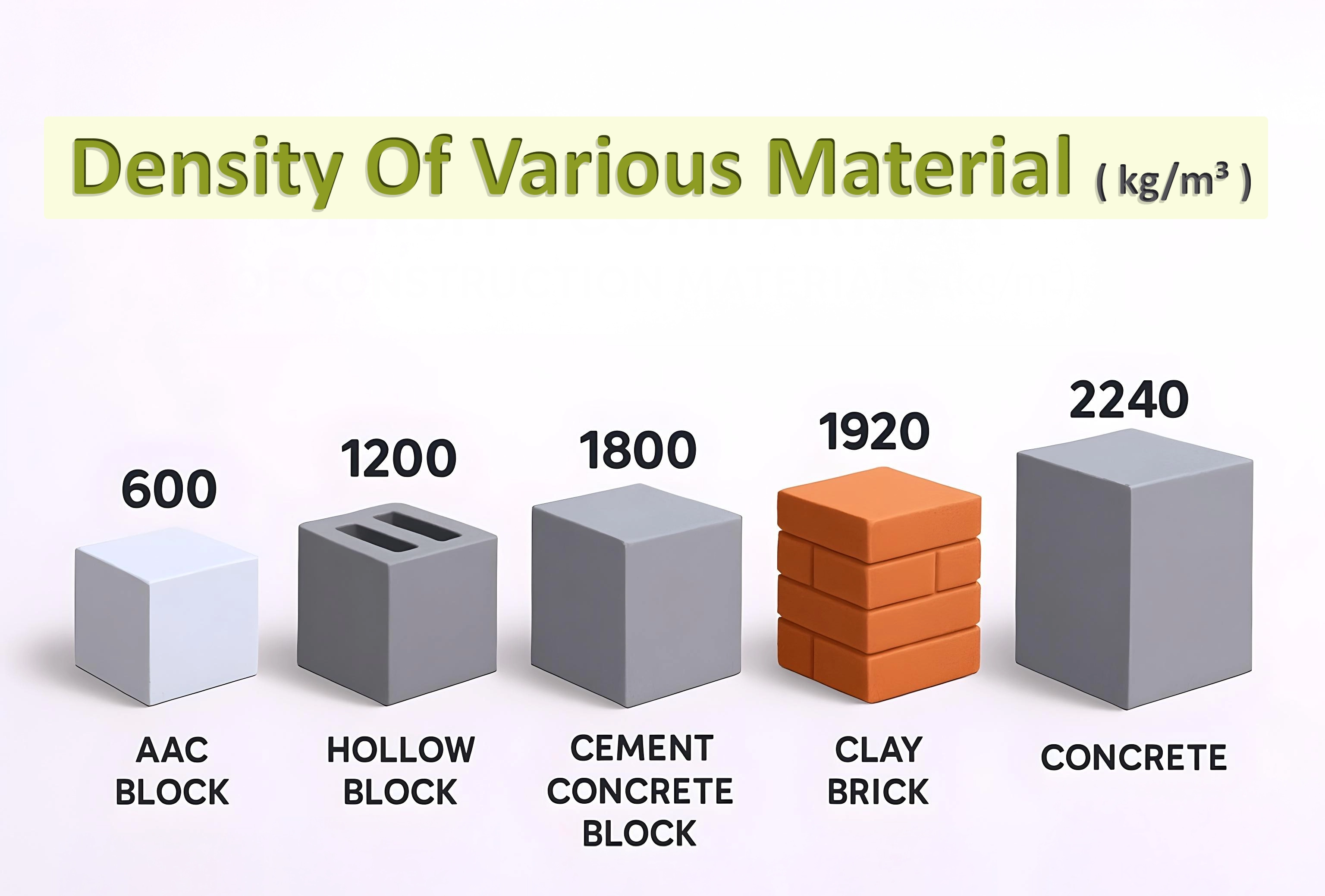

| 4. | Dry Density | 550 - 650 kg/Cum (Oven dry) | 1950 Kg/Cum |
| 5. | Fire Resistance | 02 to 06 hours (depending upon thickness) | 02 hours |
| 6. | Sound Insulation Index | 45 db for 200 mm thick wall | 50 db for 230 mm thick wall |
| 7. | Thermal Conductivity | 0.16 - 0.18 (w / m-K) | 0.81 (w / m-K) |

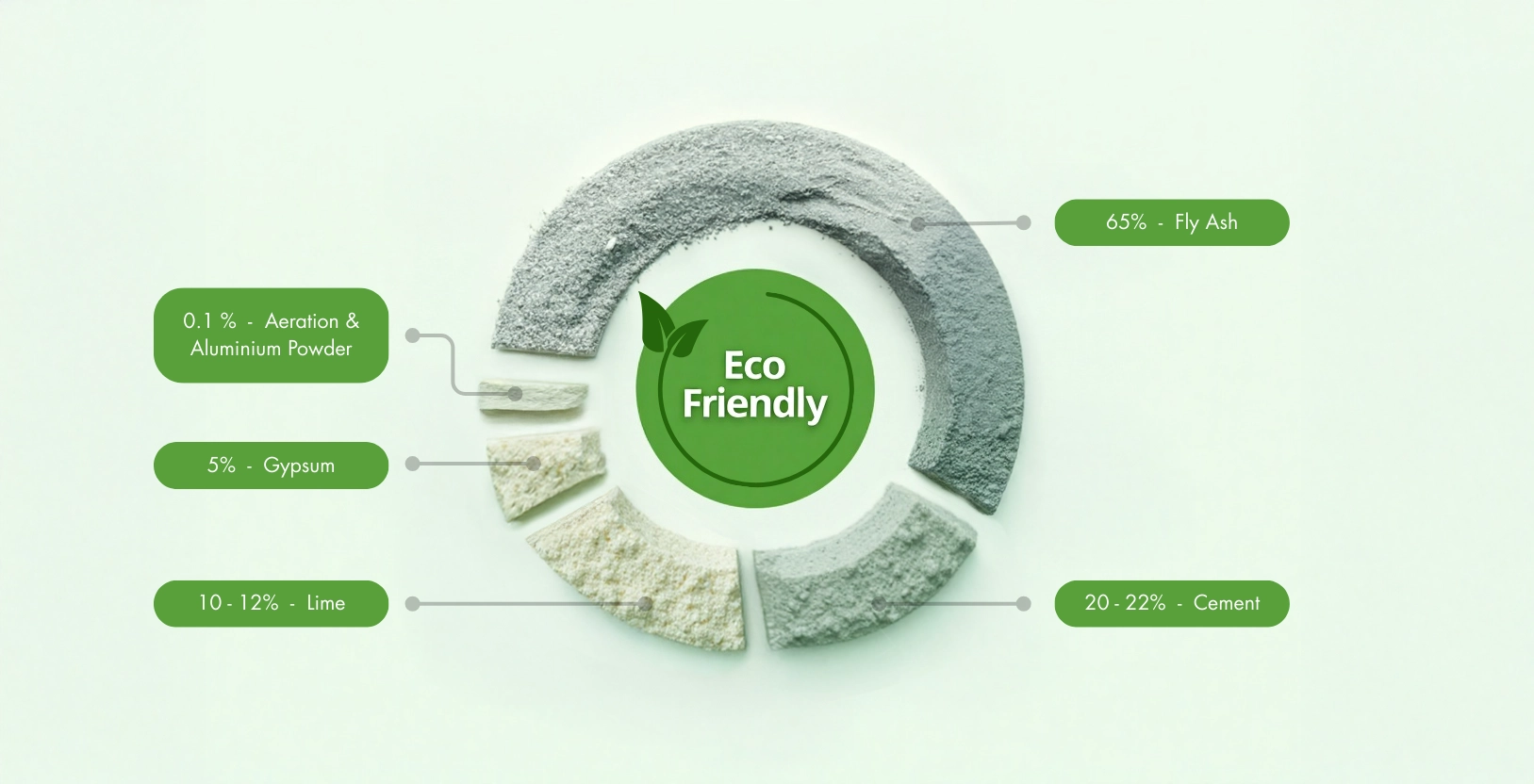

COMPOSITION OF ROCOLITE AAC BLOCKS
| S.No | Dimension of AAC Blocks (L * H * B) | Cubic Meter of AAC Block | No of AAC Block in 1 Cubic Meter | Weight of One AAC Block |
|---|---|---|---|---|
| 1. | 600 * 200 * 100 MM (2 Feet * 8" h * 4" w) |
0.01200 | 083 Pcs (Approx) | 8 / 9 kgs (Approx) |
| 2. | 600 * 200 * 150 MM (2 Feet * 8" h * 6" w) |
0.01500 | 055 Pcs (Approx) | 12 / 13 kgs (Approx) |
| 3. | 600 * 200 * 200 MM (2 Feet * 8" h * 8" w) |
0.02400 | 041 Pcs (Approx) | 16 / 17 kgs (Approx) |
| 4. | 600 * 200 * 225 MM (2 Feet * 8" h * 9" w) |
0.02700 | 037 Pcs (Approx) | 18 / 19 kgs (Approx) |
